The Vector Optics Owlset HEIM ES X-Nano XPD Mini Thermal Sight Wi-Fi VEOT-RSS08 is a compact and lightweight thermal optic engineered for low-light tactical applications, night operations, and dynamic target engagement. Designed for pistol platforms, AR-15 rifles, and LPVO top-mount setups, this ultra-compact thermal sight combines advanced thermal imaging technology with rugged field durability in a lightweight 123g housing.
Powered by a 256×192 thermal sensor with a 12μm pixel pitch and 50Hz refresh rate, the X-Nano XPD delivers smooth and responsive thermal imaging with exceptional target clarity. The 19mm lens system provides a wide field of view and reliable thermal detection capability with a detection range of up to 600 meters and recognition range up to 150 meters.
The integrated real-time hot spot tracking system automatically detects and tracks the hottest targets during nighttime search and engagement operations, enhancing situational awareness and target acquisition speed in challenging environments.
Featuring six selectable pseudo-color modes including White Hot, Black Hot, Hot Iron, Rainbow, Iron Red, and Cold Color, the thermal sight allows users to optimize contrast and target visibility depending on terrain and lighting conditions. The device also offers 10 reticle options with five selectable reticle colors for personalized aiming configurations.
The built-in 1.4-inch touchscreen display provides intuitive control and quick access to optical settings, while integrated Wi-Fi and app support enable on-device parameter adjustment and wireless connectivity for enhanced operational flexibility.
Built for harsh environments, the VEOT-RSS08 is IP66 waterproof and rated for 1000G shock resistance, ensuring dependable performance under recoil, adverse weather, and demanding field conditions. The rechargeable 16280 battery provides up to 3.5 hours of operation and supports convenient USB Type-C charging.
Compact, rugged, and feature-rich, the Vector Optics Owlset HEIM ES X-Nano XPD Mini Thermal Sight is ideal for tactical use, nighttime defense, airsoft, and low-light shooting applications.
Key Features
Ultra-compact mini thermal sight weighing only 123g

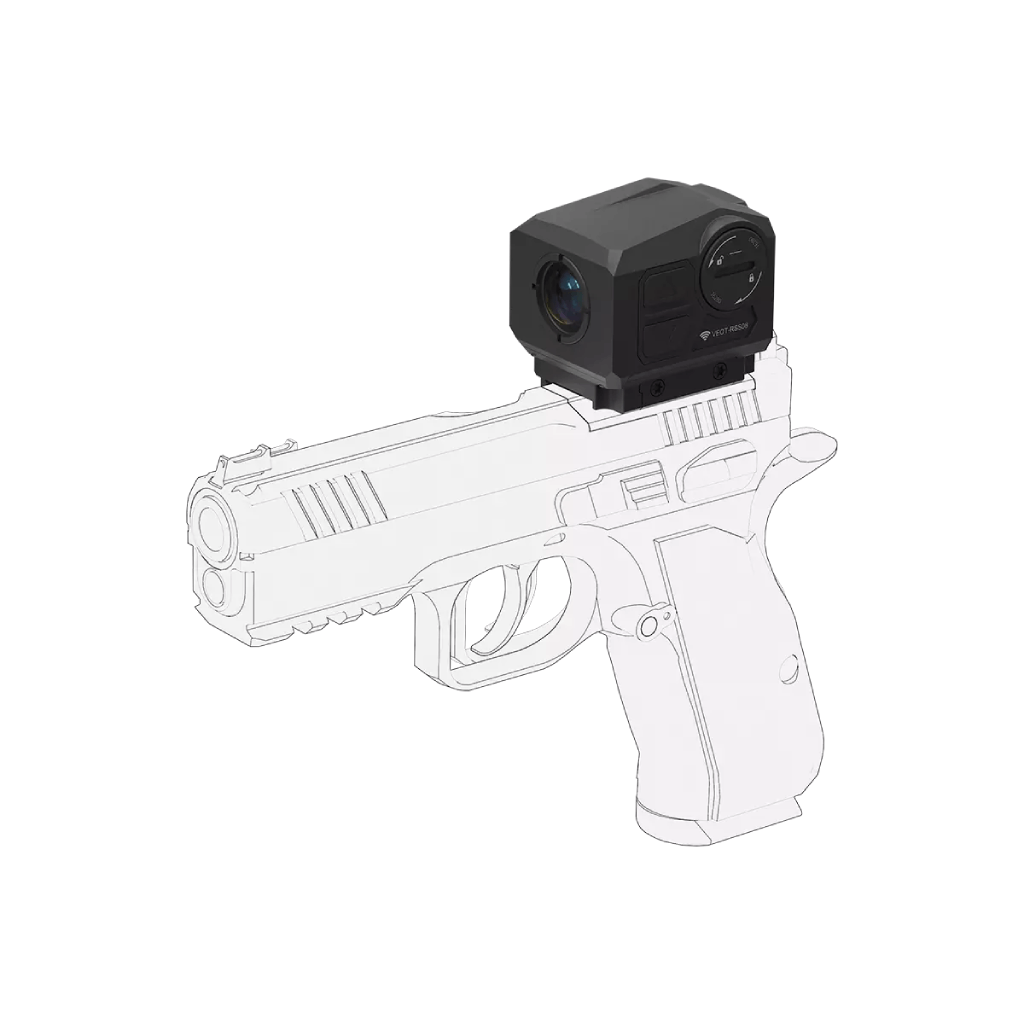

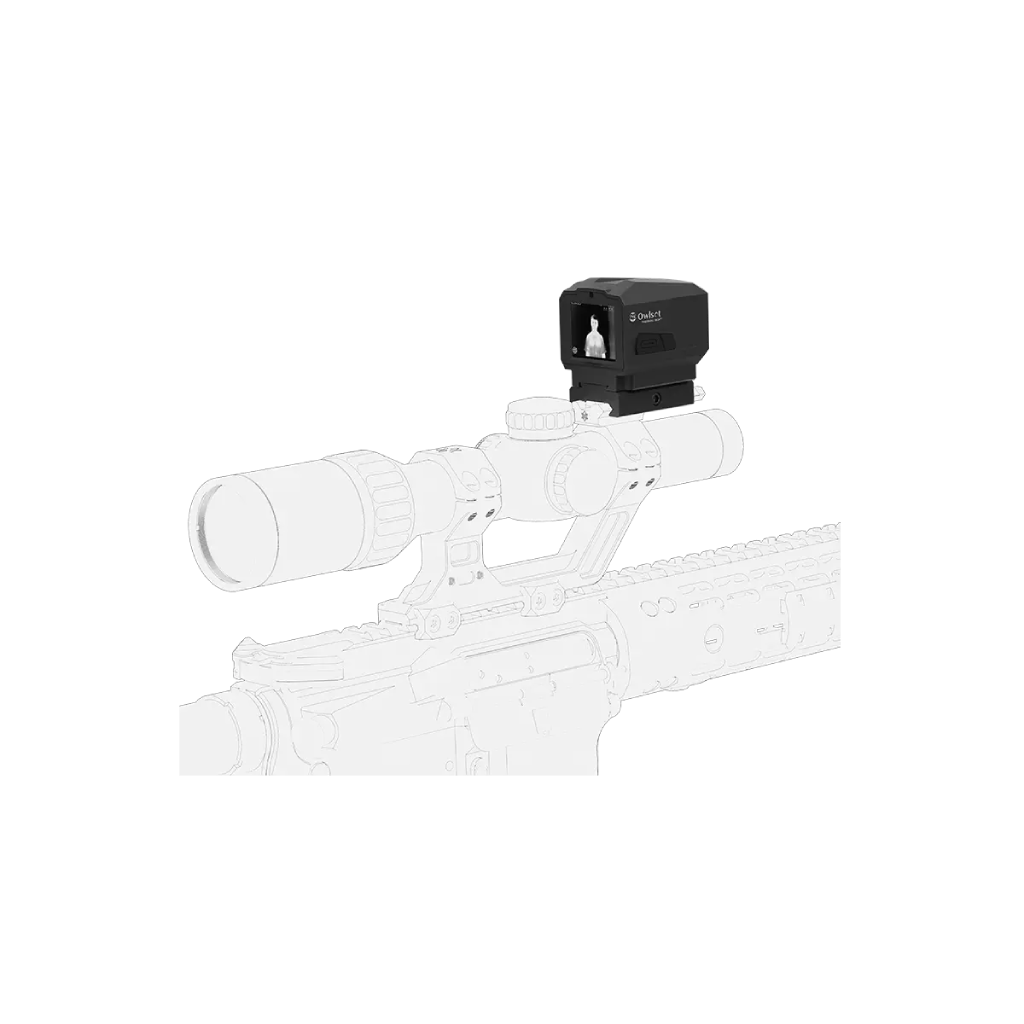

Designed for pistols, AR-15 platforms, and LPVO top mounting
256×192 thermal sensor with 12μm pixel pitch
Smooth 50Hz refresh rate for responsive thermal imaging
Real-time hot spot tracking for rapid target detection
Detection range up to 600m and recognition range up to 150m
Six pseudo-color modes for enhanced target contrast
10 reticle options with five selectable reticle colors
1.4-inch touchscreen display for intuitive control
Built-in Wi-Fi and app support for wireless configuration
IP66 waterproof construction for all-weather reliability
1000G shockproof recoil resistance
USB Type-C rechargeable battery system
Ideal for tactical, low-light, and night engagement applications
Specifications
Optical Parameters
Specification Details
Infrared Resolution 256×192 / 12μm
Frame Rate 50Hz
Basic Magnification 0.5x
Digital Zoom 1x / 2x
NETD ≤40 mK
Detection Range Up to 600m / 656.17 yds
Recognition Range Up to 150m / 164.04 yds
Angular Field of View 13.5° × 10.1°
Focus Range 5m – ∞
Display Screen 1.4-inch Touchscreen
Pseudo-Color Modes White Hot, Black Hot, Hot Iron, Rainbow, Iron Red, Cold Color
Reticle Options 10 Reticles
Reticle Colors Black, White, Red, Green, Yellow
Mechanical Parameters
Specification Details
Model VEOT-RSS08
Weight 123 g / 4.34 oz

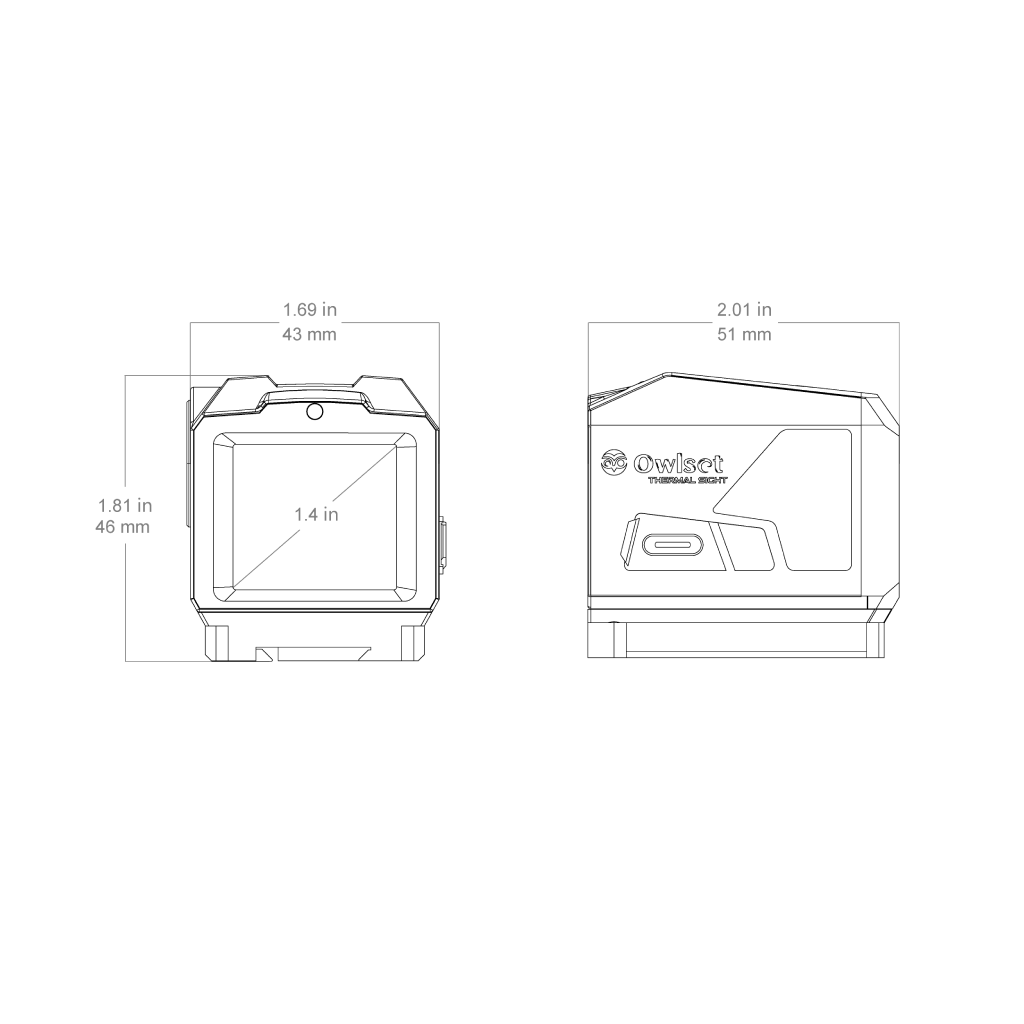

Dimensions 51×43×46 mm / 2.01×1.69×1.81 in
Wi-Fi & App Support Yes
Waterproof Rating IP66
Shockproof 1000 G
Battery Type 16280, 900 mAh
Operating Duration 3.5 Hours
Charging Interface USB Type-C, 5V
Operating Temperature -20°C to 60°C / -4°F to +140°F
