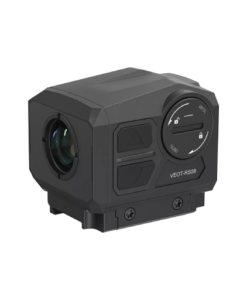

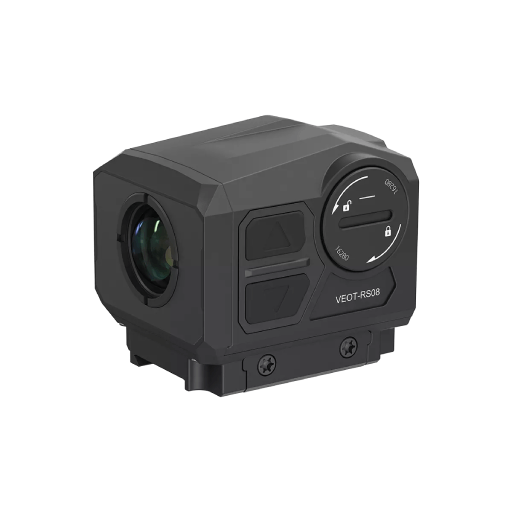

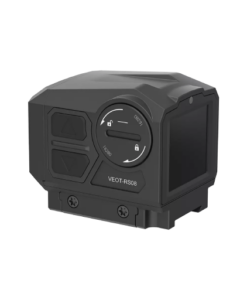

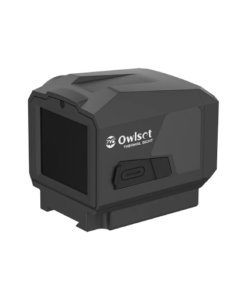

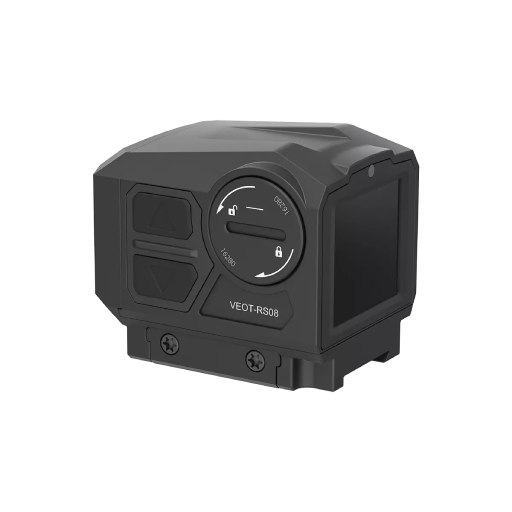

Vector Optics Heim ES X-Nano STD VEOT-RS08 – Compact Thermal Optic for Pistol & AR Platforms

The Vector Optics Heim ES X-Nano STD VEOT-RS08 is an ultra-compact thermal optic designed for pistols, AR-platform rifles, and LPVO top rail applications. Combining lightweight construction with advanced thermal imaging technology, this versatile optic delivers enhanced target detection, situational awareness, and performance in low-light and no-light environments.

At the core of the X-Nano STD is a high-sensitivity 256×192 thermal sensor with a 12 μm pixel pitch and a smooth 50 Hz refresh rate. This combination produces clear thermal imagery with minimal lag, making it easier to detect heat signatures and track moving targets in real time. The integrated 19 mm lens provides a wide field of view for improved observation and target acquisition.

A responsive 1.4-inch color touchscreen offers intuitive control over settings, reticles, and display options. The optic features automatic hotspot tracking, allowing rapid identification of the warmest objects within the viewing area. Six pseudo-color display modes provide flexible image customization for different environments and operational requirements.

Built for demanding conditions, the Heim ES X-Nano STD features an IP66-rated housing that protects against dust and water exposure. Its rugged construction withstands recoil forces up to 1000 G, making it suitable for use on a variety of firearm platforms. The rechargeable 900 mAh lithium-ion battery delivers up to 3.5 hours of continuous operation and can be recharged conveniently via USB-C.

Compact, durable, and highly capable, the Vector Optics Heim ES X-Nano STD is an ideal thermal imaging solution for hunting, observation, tactical applications, and professional use.

Key Features

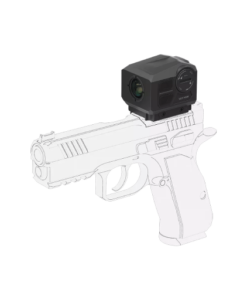

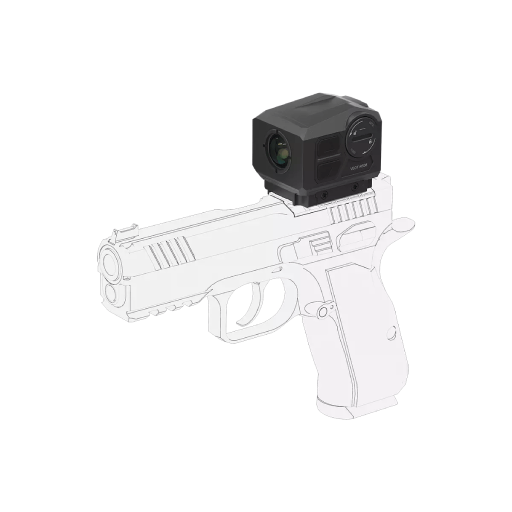

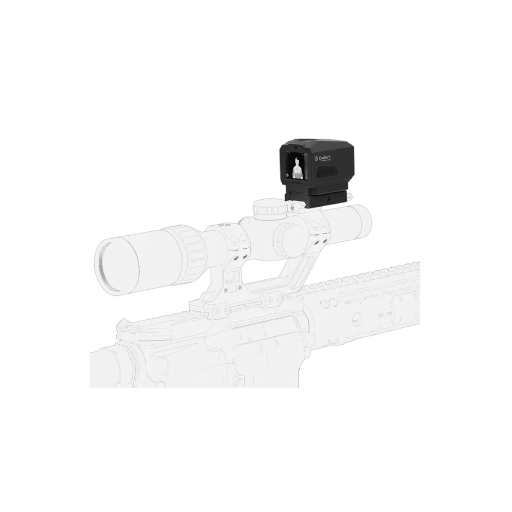

• Ultra-compact design suitable for pistols, AR platforms, and LPVO top rails
• Lightweight construction at only 123 g (4.34 oz)
• 256×192 thermal sensor with 12 μm pixel pitch for detailed thermal imaging
• Smooth 50 Hz refresh rate for real-time image performance

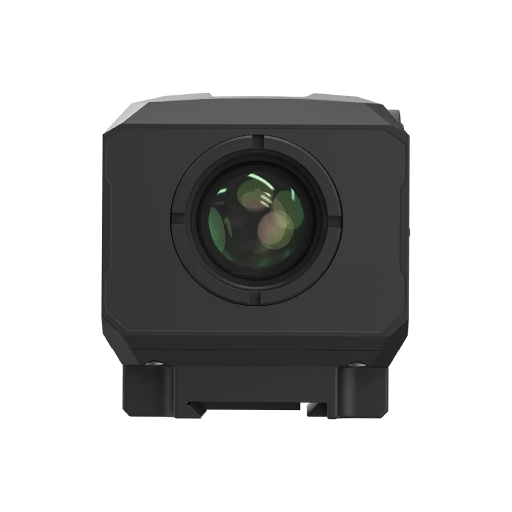

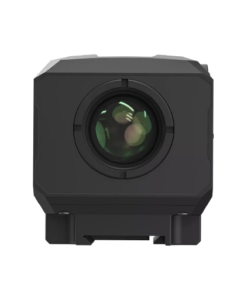

• 19 mm lens provides a wide field of view
• Automatic hotspot tracking highlights the warmest targets
• Six pseudo-color display modes for enhanced image customization
• 1.4-inch color touchscreen for intuitive operation
• IP66-rated waterproof and dustproof housing
• Shock resistance up to 1000 G for use on high-recoil platforms
• Rechargeable 900 mAh lithium-ion battery
• Up to 3.5 hours of continuous runtime
• USB-C charging for convenient power management
• Suitable for hunting, observation, tactical, and security applications

Specifications

• Model: VEOT-RS08 (Heim ES X-Nano STD)
• Sensor Resolution: 256 × 192 Pixels
• Pixel Pitch: 12 μm
• Refresh Rate: 50 Hz
• Lens Diameter: 19 mm
• Display: 1.4″ Color Capacitive Touchscreen
• Color Modes: 6 Pseudo-Color Options
• Weight: 123 g (4.34 oz)
• Dimensions: 51 × 43 × 46 mm (2.01 × 1.69 × 1.81 in)
• Waterproof/Dustproof Rating: IP66
• Shock Resistance: Up to 1000 G
• Battery Type: 16280 Li-Ion Battery
• Battery Capacity: 900 mAh
• Runtime: Up to 3.5 Hours
• Charging Port: USB-C (5 V Input)
• Operating Temperature: -20°C to +60°C (-4°F to +140°F)
• Platform Compatibility: Pistols, AR-15 Platforms, LPVO Top Rails
