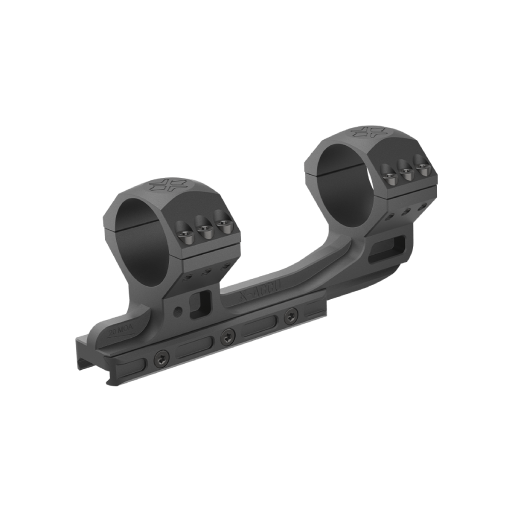

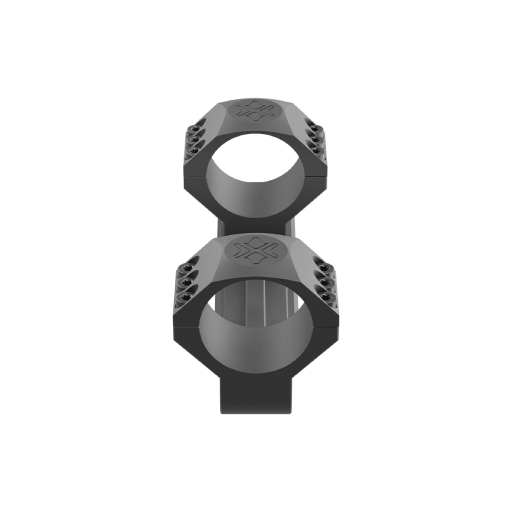

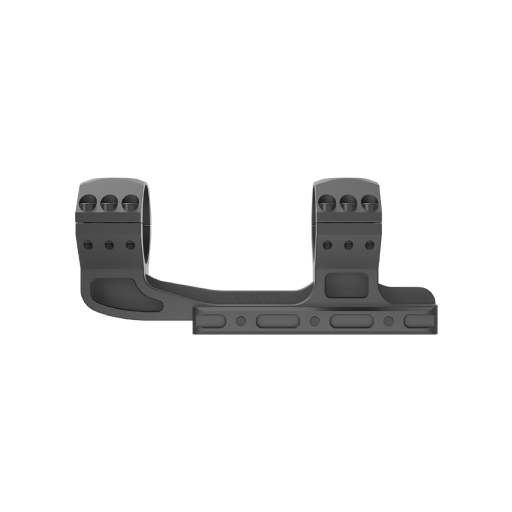

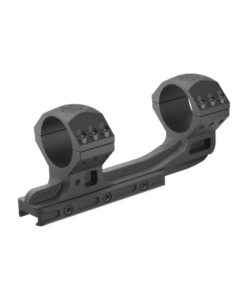

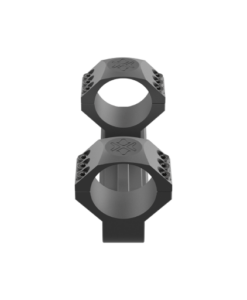

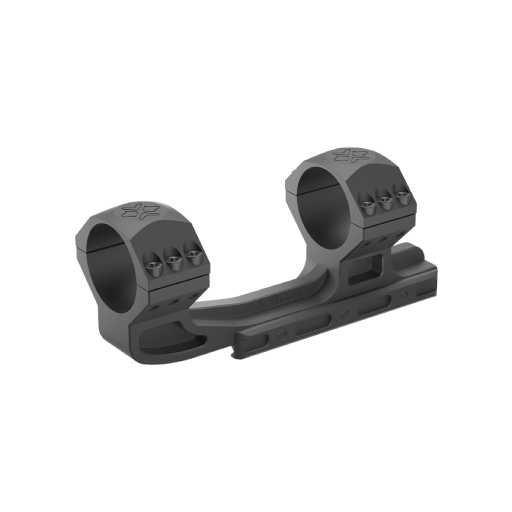

Vector Optics 34mm 20MOA One Piece High Picatinny Mount XASR-3015

The Vector Optics 34mm Cant 20MOA One Piece High Picatinny Mount XASR-3015 is a precision-engineered scope mounting solution designed for long-range shooting, tactical applications, and precision rifle setups. Featuring a built-in 20 MOA cant, this mount provides additional elevation adjustment for extended-range shooting while maintaining exceptional optic stability.

Constructed from durable 6061-T6 aluminum alloy with full CNC machining, the XASR-3015 delivers excellent strength, precision alignment, and dependable durability under demanding field conditions. The hard anodized matte black finish enhances corrosion resistance and provides a professional tactical appearance.

Designed for 34mm scope tubes, the mount features six screws per ring for maximum optic retention and stability during recoil-intensive shooting. Its high-profile configuration provides clearance for riflescopes with objective lenses up to 65mm in diameter, making it suitable for large tactical and precision optics.

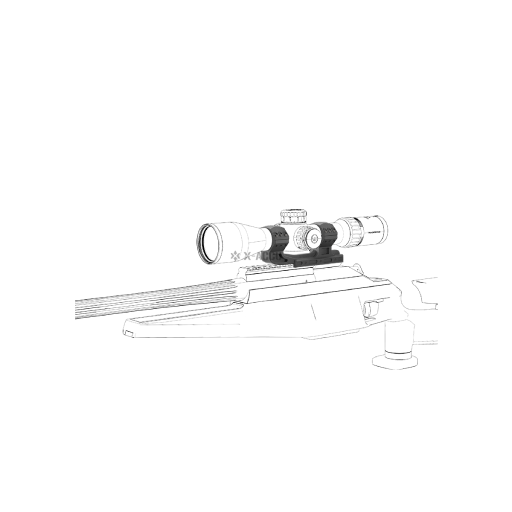

The mount secures firmly to standard 21mm Picatinny rails using three cross bolts and an integrated anti-retreat bar to maintain reliable zero retention and platform stability. With a center height of 40mm / 1.6 inches from the base to ring center, it offers optimal optic positioning for modern precision rifle systems.

Strong, stable, and purpose-built for precision shooting, the XASR-3015 is an excellent mounting solution for tactical rifles, long-range setups, and competition firearms.

Key Features
One-piece high-profile scope mount for precision rifle setups
Designed for 34mm scope tubes
Built-in 20 MOA cant for extended long-range adjustment
Fits scopes with objective lenses up to 65mm
Precision full CNC machined construction
Durable 6061-T6 aluminum alloy build
Hard anodized matte black finish for enhanced durability
Six screws per ring for secure optic retention
Three cross bolts with anti-retreat bar for stable mounting
Compatible with standard 21mm Picatinny rails
High-profile design for large tactical optics
Ideal for long-range shooting, tactical use, and competition applications

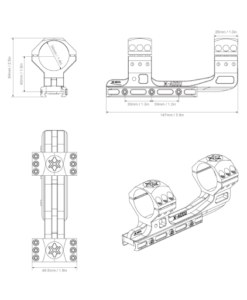

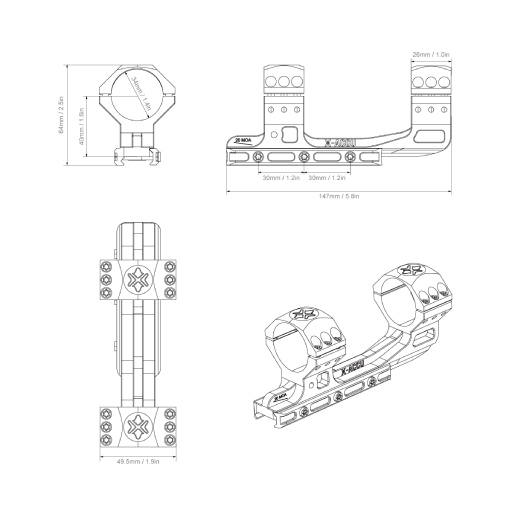

Specifications
Specification Details
Model XASR-3015
Ring Diameter 34 mm / 1.3 in
MOA 20 MOA
Mount Type One Piece High Picatinny Mount
Material 6061-T6 Aluminum Alloy
Finish Black Matte
Height 64 mm / 2.5 in
Central Height 40 mm / 1.6 in (Bottom to Center)
Length 147 mm / 5.8 in
Weight 212 g / 8.3 oz
Rail Compatibility 21 mm Picatinny
Torque Specification 18–22 in/lbs (2.0–2.5 N·m)
Scope Objective Compatibility Up to 65 mm
