Vector Optic X-Accu SCTM-57 34mm High Profile One-Piece Picatinny Scope Mount – Black

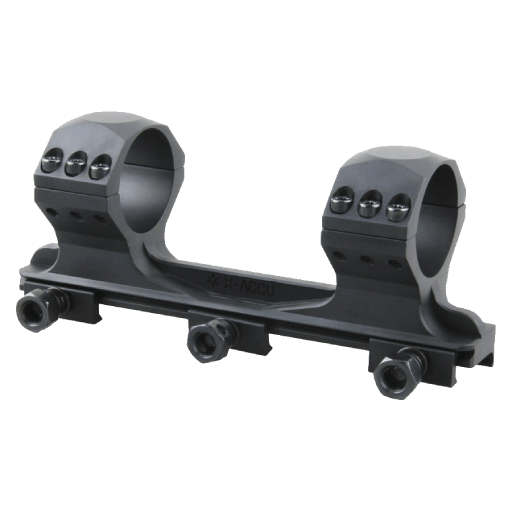

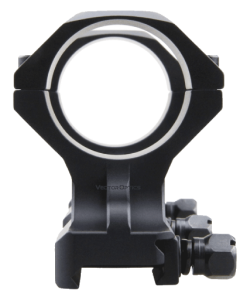

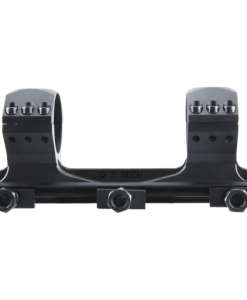

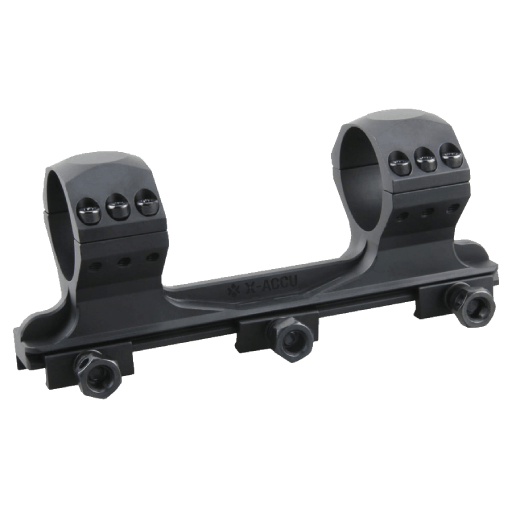

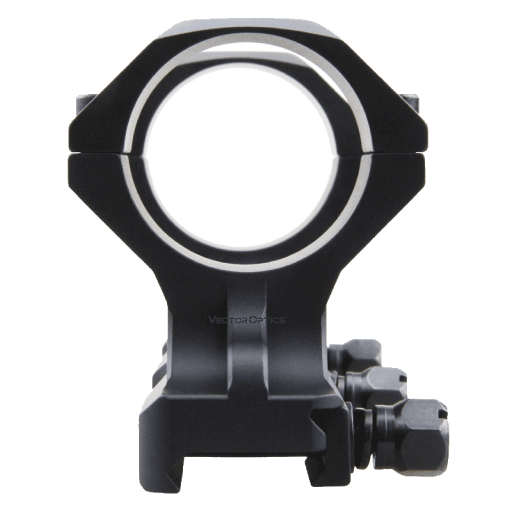

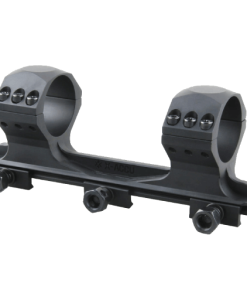

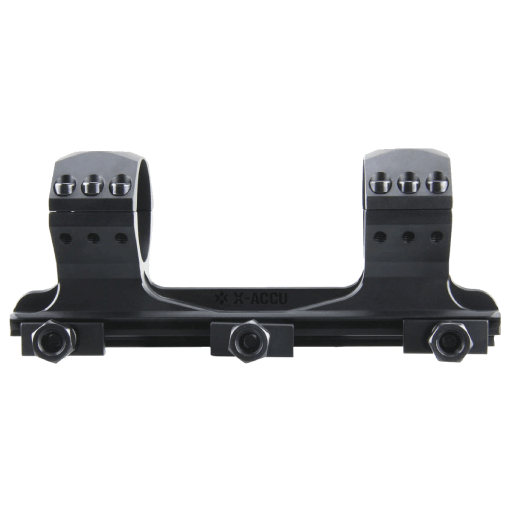

The X-Accu SCTM-57 34mm High Profile One-Piece Scope Mount is designed to securely mount compatible riflescopes with a 34mm main tube onto a 21mm Picatinny rail. Manufactured from 6061-T6 aluminium alloy, it features a full CNC-machined construction with a hard-anodised finish for durability.

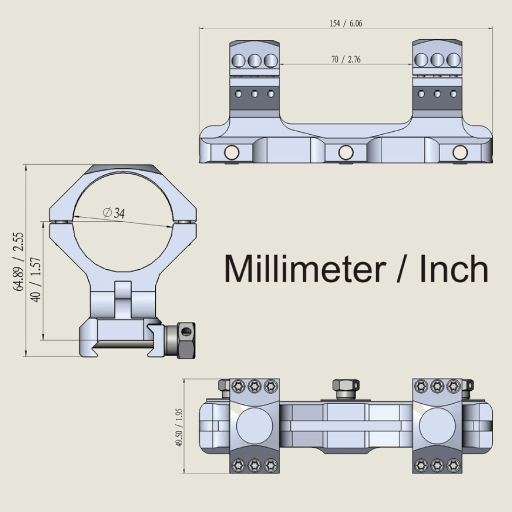

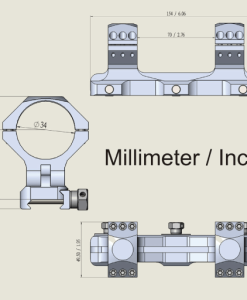

The mount has a 40mm centre height, measured from the bottom of the mount to the centre of the scope rings, and a total length of 154mm. Each ring is secured with six screws, while the mounting base incorporates three cross bolts and anti-retreat features to help maintain a secure position on the rail.

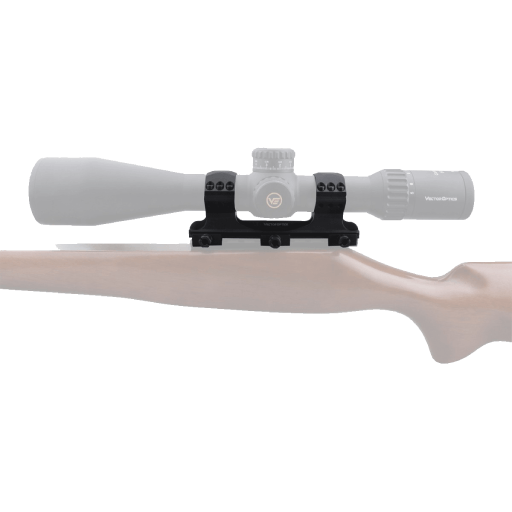

Finished in matte black, this one-piece mount provides a stable mounting platform for compatible optics. It is specified to accommodate scopes with an objective lens diameter of up to 65mm, although actual clearance depends on the scope’s dimensions, rifle configuration and rail position.

Key Features

Brand: X-Accu

Model: SCTM-57

Mount Type: One-piece scope mount

Ring Diameter: 34mm (1.3 inches)

Profile: High profile

Centre Height: 40mm (1.6 inches), measured from the bottom of the mount to the ring centre

Rail Compatibility: 21mm Picatinny rail

Ring Fastening: Six screws per ring

Rail Fastening: Three cross bolts with anti-retreat features

Material: 6061-T6 aluminium alloy

Manufacturing: Full CNC-machined construction

Finish: Matte black, hard-anodised

Overall Length: 154mm (6.1 inches)

Weight: 265g (9.3 oz)

Maximum Specified Objective Lens Diameter: 65mm, subject to clearance

Specified Maximum Mounting Torque: 45 inch-pounds, as stated in the supplied product specifications; confirm the correct torque for each fastener before installation.

Specifications

Specification

Details

Brand

X-Accu

Model

SCTM-57

Ring Diameter

34mm

Centre Height

40mm

Overall Length

154mm

Material

6061-T6 Aluminium Alloy

Finish

Matte Black, Hard-Anodised

Rail Type

21mm Picatinny

Ring Screws

Six per ring

Cross Bolts

Three

Weight

265g
