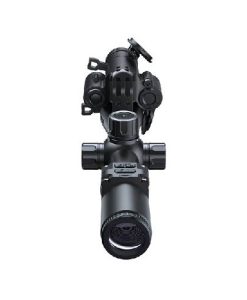

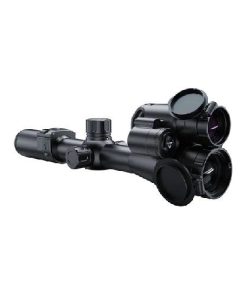

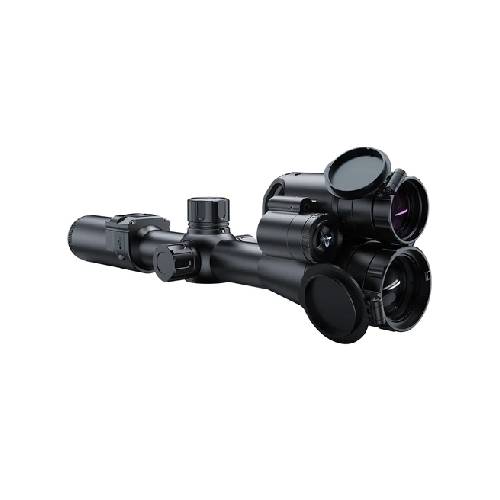

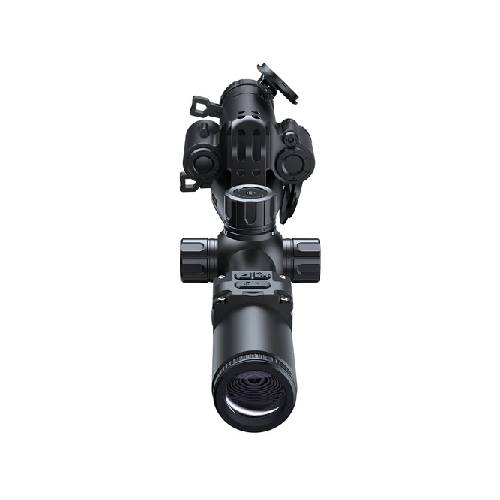

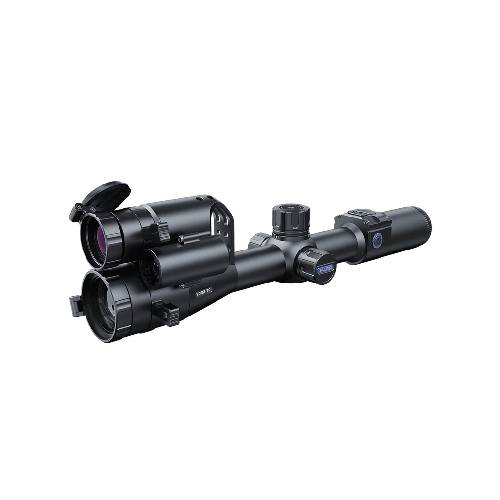

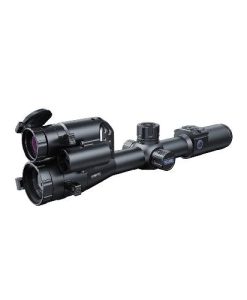

DEVICE THAT MERGES TWO WORLDS OF NIGHT VISION AND THERMAL IMAGING
TD32 is a multi-spectral scope that can quickly switch between thermal imaging and day/night image. Thermal imaging can be used to detect the target and night vision image to present clear details.
Thermal imaging sensor (12μm) can detect subtle differences in temperature and present perfect image detail.
The Infrared fill light has three levels and the illumination distance is up to 350m. There are 850/940nm for option while the 850nm band is brighter and allows you to see much further and the 940nm band is suitable for concealed observation.
The built in Laser Range Finder detects targets up to 1000m away,which help you shoot more precisely.
The TD32 series is available with 2 different lens options (50mm and 70mm).
The convenient location of the control knob allows the user to quickly and easily change between menu options.
HIGH SENSITIVITY THERMAL SENSOR AND VISIBLE SENSOR FOR DAYTIME AND NIGHTHUNTING
Coupled with a high-sensitivity thermal imaging detector with a resolution of 384×288, 12μm pixel pitch, and NETD≤25mK, combined with a high-performance CMOS sensor and multi-channel display, the TD32-70 provides a versatile hunting experience.
384×288
Thermal Sensor Resolution (pixel)
12×12
Pixel Size
(μm)
(μm)
≤25mK(0.025°C)
NETD
(mK)
(mK)
LRF 1000M WITH BALLISTIC CALCULATION FUNCTION
The cutting-edge LRF (Laser Rangefinder) of TD32-70, will revolutionize your hunting experience. With an impressive range of 1000m, it delivers real-time and accurate distance measurements, empowering you with unparalleled precision for ballistic calculations.
The cutting-edge LRF (Laser Rangefinder) of TD32-70, will revolutionize your hunting experience. With an impressive range of 1000m, it delivers real-time and accurate distance measurements, empowering you with unparalleled precision for ballistic calculations.
DUAL ENGINES ENHANCED IMAGING ALGORITHM
The dual-engine of Infrared Image Enhancement Algorithm (IREA) and Visible Image Enhancement Algorithm (VLEA) enables richer and clearer image details.
100mm LONG EYE RELIEF DISPLAY SYSTEM
TD32-70 features a 100mm long eye relief, providing a clearer view while maintaining the comfort of using optical scopeoptical scope during hunting activities. Allows for prolonged hunting observation without eye strain. during hunting activities.
| Thermal Sensor | |
|---|---|
| Resolution | 384×288 px |
| Pixel size | 12 μm |
| NETD | ≤25mK |
| Frame rate | 50 Hz |
| Human detection distance | 1400 m |
| Vehicle detection distance | 2600 m |
| Image engine | Pard IREA |
| Objective lens | 35 mm |
| Optical magnification | 3 x |
| Digital zoom | 2 x |
| Continuous digital zoom | 6.5-13 |
| FOV(Horizontal) | 5.7° |
| FOV(Vertical) | 5.7° |
| FOV(Diagonal) | 8° |
| Focus range | 3m-∞ |
| Visible Light Sensor | |
| Resolution | 1920*1080 px |
| Pixel Size | 2.9 μm |
| Sensitivity | 0.001lux |
| Frame rate | 30 fps |
| Image engine | Pard IREA |
| Objective lens | 70 mm |
| Optical magnification | 6.5 x |
| Digital zoom | 2 x |
| Continuous digital zoom | 6.5-13 |
| FOV(Horizontal) | 2.6° |
| FOV(Vertical) | 2.6° |
| FOV(Diagonal) | 3.6° |
| Focus range | 3m-∞ |
| Display | |
| Type | IPS LCD |
| Resolution | 800*800 px |
| Reticle style | 6 |
| Reticle color | 4(Red/White/Yellow/Green) |
| Scene mode | City/Rain/Forest |
| Image mode | WT-HOT/BK-HOT/EDGE/RD-HOT/IN-HOT/SKY |
| Eye relief | 100 mm |
| Diopter adjustment | -5D~+3D |
| Photo / Video | |
| Photo resolution | 2592*1944 px |
| Photo format | .JPG |
| Video resolution | Thermal: 1024*768 px/Night Vision: 1440*1080 px |
| Video format | .mp4 |
| Storage | TF card(128 GB)(Max) |
| Main Function | |
| LRF detection range | 1000 m |
| Ballistic calculator | Yes |
| PIP | Yes |
| Gyroscope | Yes |
| Self-motivated recording | Yes |
| Loop recording | Yes |
| Red dot | Yes |
| E-compass | Yes |
| Shutter | Mechanical shutter |
| Microphone | Yes |
| Firmware Upgrade | Yes |
| IR Illuminator | |
| IR ype | VCSEL |
| IR power | 5W |
| IR illuminating level | 3 levels |
| IR distance | 350 m |
| IR Wavelength | 850/940 nm |
| Connections | |
| WiFi | Yes |
| Supported Apps | PardVision |
| Power Supply | |
| Battery type | Lithium Ion 21700*1 |
| Output voltage | 3.7 v |
| Operating time | ≤6 h |
| External power supply | Type-C |
