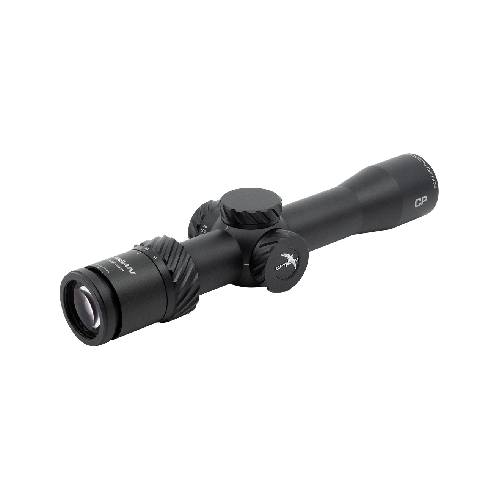

OPTISAN 04002 CP 3-12X32P

OPTISAN 04002 CP 3-12X32P



Optisan co-develops shooting systems with top shooters to withstand the rigors of the field while excelling at the demands of competition. Our meticulous testing and constant improvements have won the approval of European champion shooters. Before it becomes part of your shooting system, each of the 90-150 components that will become your optic are subjected to more than 200 quality control points, all of which are done 100% in-house.



Compact design



Only 25.4 cm in length and less than 0.48 kg the CP is the perfect partner for compact and lightweight rifles.



Minimized Parallax error



With a 32mm objective lens, the CP is able to minimize the effects of Parallax error. This means you have a scope that experiences very small shifts of impact as you change your head position or distance to target.

This means that you can leave the parallax fixed and shoot targets at different distances without experiencing a shift of point of impact, this is very helpful in many competitive shooting situations.

The parallax adjustment range is from 10 yards up to 500 yards to infinity.



Springer Rated



Field-tested by champion shooters for more than one year on springer rifle. It is a robust riflescope that is capable of use on centerfire rifles.



Sleek Design



+ Extremely low-profile turret

All stainless steel extremely low profile turret with 10 mrad of adjustment per turn. No obstruction of view even when a night vision eyepiece is attached.



What comes in the box:



2.5” sunshade, Lens covers.



OPTICAL DATA
Magnification (High)	12X
Magnification (Low)	3X
Objective Diameter (mm)	32mm
Outer dia. Objective (mm)	40mm
FOV (min.mag）(ft/100yds)	36
FOV (max.mag）(ft/100yds)	9
Eye relief (in)	3.5″ – 3.3″
Exit Pupil (Max mag.） (mm)	2.6 mm
Exit Pupil (min. mag.） (mm)	10.6 mm
Diopter Range (dpt)	+/- 2.0
Parallax Adjustment	10yds – infinity (100yds pa free)
Coating	Fully Multi-coated
MECHANICAL DATA
Tube Construction	One-piece tube, aircraft aluminum
Elevation Adjustment (value per click)	0.1 mrad
Windage Adjustment (value per click)	0.1 mrad
Turret Style (Elevation)	Low-profile, Zero-resettable
Turret Style (Windage)	Low-profile, Zero-resettable
Travel Per Rotation	10 mrad
Elevation adj. range	≥ 20 mrad
Windage adj. range	≥ 20 mrad
Eye Piece Diameter (in)	1.55”
Eye Piece Diameter (mm)	39.5 mm
Eye Piece Length (in)	1.08”
Eye Piece Length (mm)	27.55 mm
Mounting Length rear (mm)	55.70 mm
Mounting Length front (mm)	30.00 mm
Tube Dia. (mm)	30 mm
Length (in)	9.52”
Length (mm)	242mm
Weight (g)	487
Weight (oz)	17.17
Surface Finish	Matte Black
ENVIRONMENT DATA
Functional temperature	-20 ~ 50 degree celcius
Storage temperature	-20 ~ 50 degree celcius
Submersion tightness	JIS 7
RETICLE DATA
Reticle	SFPMH10X
Calibrated Ranging Power	10X
Focal plane	Second
Illumination	Non-illuminated
DELIVERY INCLUDE
Standard Accessories	2.5” sunshade Lens covers
