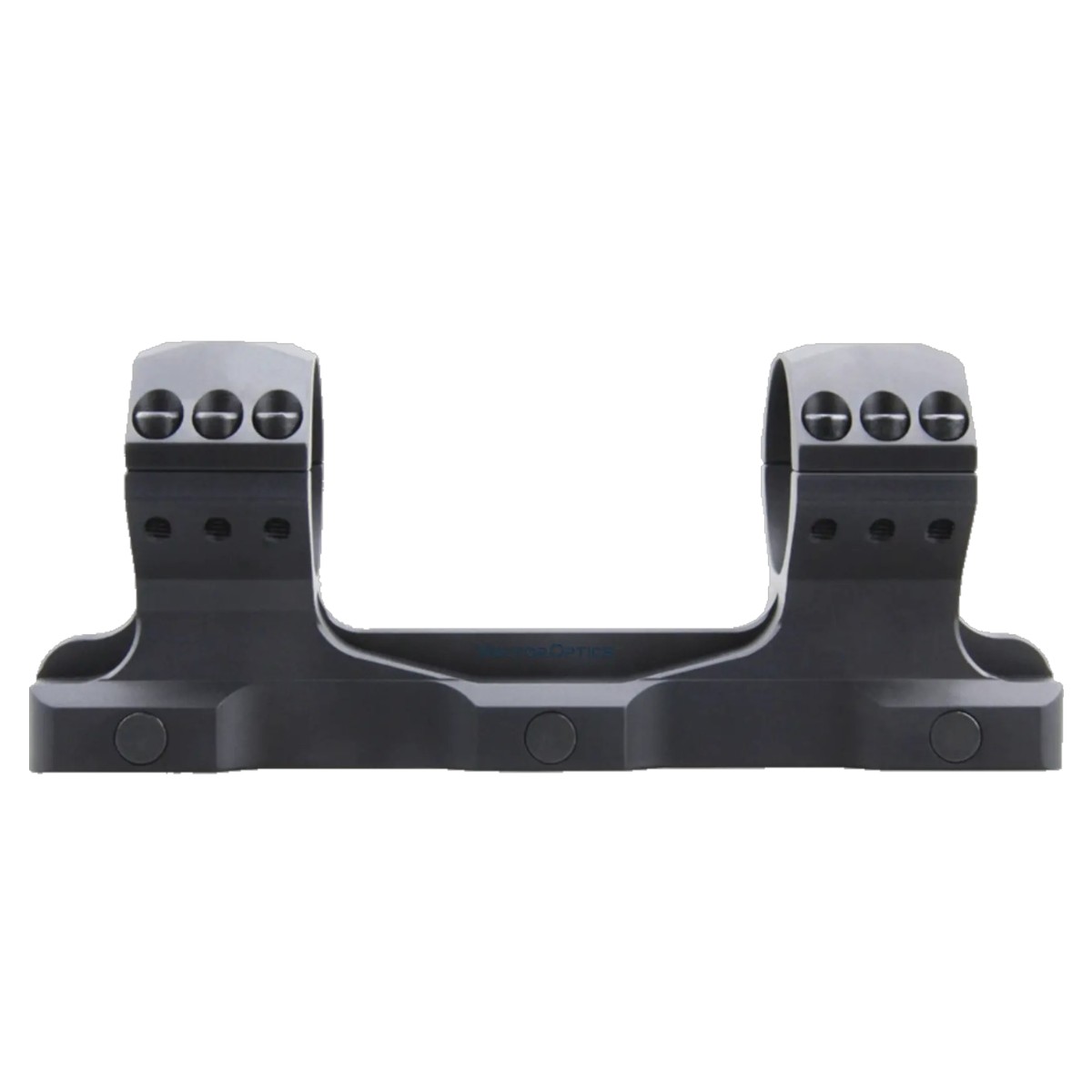

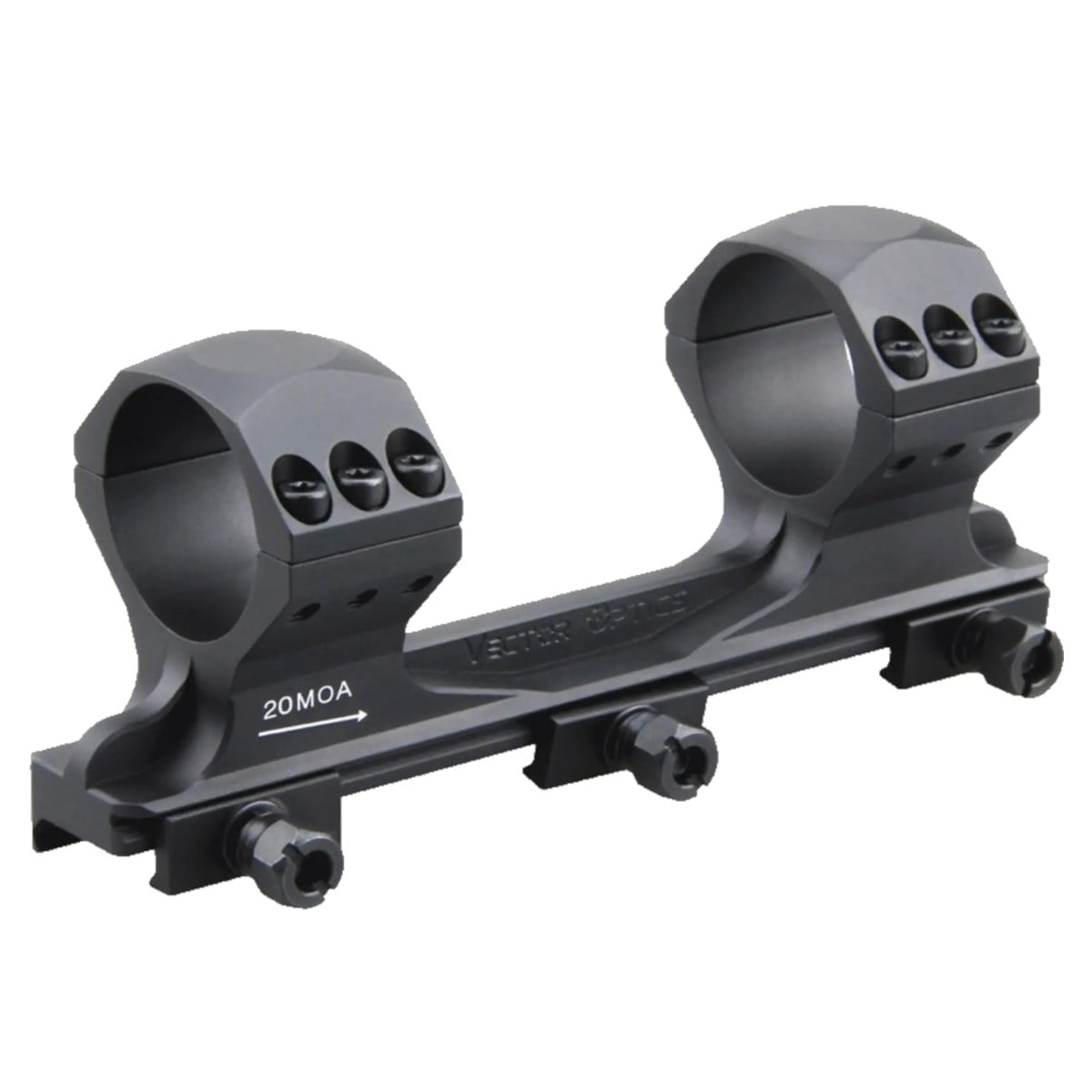

30MM X-ACCU ONE PIECE 20MOA MED PICATINNY MOUNT – XASR-3011

The Vector Optics XASR-3040 X-Accu One-Piece Scope Mount is a rugged, precision-engineered mounting solution designed for high-performance riflescopes with 30mm tubes. Featuring a built-in 20MOA (6MIL) cant, this mount provides added elevation for long-range shooting, allowing shooters to maximize the scope’s internal adjustment range.

Machined from aerospace-grade 6061-T6 aluminum alloy and finished with hard anodizing for superior durability, the XASR-3040 is made to withstand heavy recoil from high-caliber firearms. The 21mm Picatinny base is reinforced with three cross bolts for rock-solid mounting, and anti-retreat rings help maintain zero even under intense firing conditions.

Each ring is secured with six Torx screws, ensuring the scope remains firmly in place during rugged use. With a central height of 32mm (1.2″), it’s optimized for scopes with up to 50mm objective lenses. Whether for tactical, competitive, or precision long-range applications, this one-piece mount delivers uncompromising strength, stability, and alignment.

Features:

• 30mm Diameter Rings: Compatible with most tactical and precision riflescopes
• 20MOA (6MIL) Cant: Allows extra elevation adjustment for long-range shooting
• High-Profile Design (32mm Center Height): Fits scopes with up to 50mm objective lenses
• One-Piece Construction: Provides maximum alignment and rigidity
• Fully CNC Machined: Precision manufacturing for consistent accuracy
• Hard Anodized Finish: Durable black matte coating resists wear and corrosion
• Three Steel Cross Bolts: Securely anchors mount to Picatinny rail
• Anti-Retreat Ring Design: Prevents shifting under recoil
• 6 Torx Screws per Ring: Maximum clamping force for heavy recoil calibers
• Includes T15 Torx Wrench: For proper installation torque
• Recommended Torque:

• • 18 in-lbs for ring screws

  • 25 in-lbs (Max 45 in-lbs) for cross bolts

Specifications:

• Tube Diameter: 30mm
• MOA Cant: 20MOA / 6MIL
• Central Height: 32mm / 1.2in (base to ring center)
• Ring Width: 45.5mm / 1.8in
• Ring Length: 26mm / 1.0in
• Gap Between Rings: 70mm / 2.8in
• Mount Length: 154mm / 6.1in
• Overall Height: 59mm / 2.3in
• Weight: 230g / 8.5oz
• Material: 6061-T6 aluminum alloy
• Mounting Base: 21mm Picatinny
• Finish: Hard anodizing, black matte
• Screws per Ring: 6
• Included: T15 Torx wrench, retail package
